OSSEC is a host-based intrusion detection system (HIDS). It is specially well known for monitoring files that shouldn’t change on a system (such as critical system files, or binaries, etc) and warning administrators (or anyone you’d like) about those issues. But it does more such as rootkit detection and log analysis with a dedicated engine. Furthermore OSSEC is PCI compliant.
OSSEC is a system that can work on a single host, monitoring itself and reporting to the administrator but typically there is a central server managing agents. Agents are installed on other boxes (Windows clients or servers but also UNIX or GNU/Linux servers) and those report to the central OSSEC server, so they are monitored in a centralized fashion. This eases the job of security personnel and administrators alike. Alerts can be configured so emails are received the very instant something wrong is happening and quick actions can be taken. Alerts can be sent to an ELK stack for further inspection but also to SIEM software such as IBM’s QRadar or AT&T’s open source AlienVault OSSIM.
On this how to install OSSEC on Ubuntu guide we will only install the tool and will make litlle configuration. On a later article we’ll have a better and extended configuration tour. If in doubt here is the official documentation. We will also install it from sources, not from any repository, which can pose a problem when upgrading the tool because new builds may fail. On a second part of the article I’ll set the instructions (a script) on how to install already compiled binaries and how to configure it minimally, so you can choose what installation you’d like to have. You can always script both tasks, but already compiled binaries are a thing for a reason. Ease of maintenance.
If you find the articles in Adminbyaccident.com useful to you, please consider making a donation.
We will now install OSSEC, make a basic configuration including sending emails with alerts, will briefly explain important files so we can later tune OSSEC to our needs, we’ll also install a Windows agent to report to this server install, and as a last step we’ll also install a web user interface to look for alerts.
Let’s go with this how to install OSSEC on Ubuntu.
As always we do update system sources first.
$ sudo apt update
If packages can be upgraded do it now.
$ sudo apt upgrade -y
First we will install the necessary packages to build OSSEC from sources.
$ sudo apt install build-essential gcc make unzip sendmail inotify-tools expect libevent-dev libpcre2-dev libz-dev libssl-dev -y
Once these dependencies have been fulfilled it is time to download OSSEC and build it in our system.
$ sudo wget -P /opt https://github.com/ossec/ossec-hids/archive/3.6.0.tar.gz
The above command will download the OSSEC sources into the /opt directory. Before building those we need to extract them from the tarball. We’ll use the next command:
$ sudo tar -zxf /opt/3.6.0.tar.gz --directory /opt
Once downloaded and uncompressed we can start the installation process. Very conveniently there is an script already incorporated on the program for this task. We launch this installer.
$ sudo sh /opt/ossec-hids-3.6.0/install.sh
This will trigger the script which will first ask a few questions and then it will build and install OSSEC in our system.
First step we will be aksed what language to use:
$ sudo sh /opt/ossec-hids-3.6.0/install.sh
** Para instalação em português, escolha [br].
** 要使用中文进行安装, 请选择 [cn].
** Fur eine deutsche Installation wohlen Sie [de].
** Για εγκατάσταση στα Ελληνικά, επιλέξτε [el].
** For installation in English, choose [en].
** Para instalar en Español , eliga [es].
** Pour une installation en français, choisissez [fr]
** A Magyar nyelvű telepítéshez válassza [hu].
** Per l'installazione in Italiano, scegli [it].
** Voor installatie in het Nederlands, kies [nl].
** Aby instalować w języku Polskim, wybierz [pl].
** Для инструкций по установке на русском ,введите [ru].
** Za instalaciju na srpskom, izaberi [sr].
** Türkçe kurulum için seçin [tr].
I’ll choose the default. Pick up yours.
The second step will be an acknowledgement for you to be aware of the procedure you are about to accomplish.
OSSEC HIDS v3.6.0 Installation Script - http://www.ossec.net
You are about to start the installation process of the OSSEC HIDS.
You must have a C compiler pre-installed in your system.
- System: Linux ossecman 4.15.0-88-generic
- User: root
- Host: ossecman
-- Press ENTER to continue or Ctrl-C to abort. --
Next the questions start.
1- What kind of installation do you want (server, agent, local, hybrid or help)?
We’ll type ‘server’. We’ll be notified by a message like this.
- Server installation chosen.
A second question will be asked.
2- Setting up the installation environment.
- Choose where to install the OSSEC HIDS [/var/ossec]:
Use the default by pressing enter, but you can also choose your poison here and type some other path of your choice.
A third question will arise in fhis form:
3- Configuring the OSSEC HIDS.
3.1- Do you want e-mail notification? (y/n) [y]:
Type yes and a sub-question will pop up similar to this:
- What's your e-mail address?
Type the email of choice. I’ll use the system’s one, ‘root@localhost’, but granted a gmail account should work as well. A new question will come up.
3.1- Do you want e-mail notification? (y/n) [y]:
- What's your e-mail address? root@localhost
- We found your SMTP server as: 127.0.0.1
- Do you want to use it? (y/n) [y]:
Say ‘yes’ or just press enter. If you choose this option alerts will be recevied by the root’s mail account. And they will read similar to this following format.
OSSEC HIDS Notification.
2020 Mar 04 12:23:26
Received From: ossecman->/var/log/dpkg.log
Rule: 2902 fired (level 7) -> "New dpkg (Debian Package) installed."
Portion of the log(s):
2020-03-04 12:23:25 status installed libntlm0:amd64 1.4-8
--END OF NOTIFICATION
In this case the received alert warns us about a new package install. This was triggered when I installed ‘mailutils’ package so I could locally read emails at the CLI.
Now question 3.2 comes in.
3.2- Do you want to run the integrity check daemon? (y/n) [y]:
Say yes to this. Why? This will configure a daemon to check files, so if those are changed you’ll be notified by email.
Time to ask if a rootkit check daemon is of your interest. Why not? Maybe you already have something in place such as rkhunter but this one from OSSEC won’t hurt and you’ll get nice notifications by mail if you go with the defaults. However if you prettend to monitor servers that already have antivirus installed and those systems resources are already tight you can choose ‘no’ here.
3.3- Do you want to run the rootkit detection engine? (y/n) [y]:
A new question is presented, now asking this.
3.4- Active response allows you to execute a specific
command based on the events received. For example,
you can block an IP address or disable access for
a specific user.
More information at:
- Do you want to enable active response? (y/n) [y]:
But what is this? OSSEC is able to automatically execute certain actions depending on alerts already set up and/or ones you’ve put in place. More information here. Use the defaults. But be aware this will be overkill if you just need a warning about an altered file. Choose ‘no’ if you just want the notification and will further proceed with manual actions. However if you want a tight security mechanism that will block activity choose ‘yes’. I’ll go with the defaults here.
Now we’ll be aksed an interesting question.
- By default, we can enable the host-deny and the
firewall-drop responses. The first one will add
a host to the /etc/hosts.deny and the second one
will block the host on iptables (if linux) or on
ipfilter (if Solaris, FreeBSD or NetBSD).
- They can be used to stop SSHD brute force scans,
portscans and some other forms of attacks. You can
also add them to block on snort events, for example.
- Do you want to enable the firewall-drop response? (y/n) [y]:
This is a bit tricky. Let’s imagine we have some files or binaries monitored. And one of them changes, disappears, for the whatever reason. Setting this can block that host at the firewall level. But as the message states this ban can be triggered on other events such as alerts from other security systems. The tricky bit is, will you remember to disable this or to configure it properply so you don’t get false alerts and unnecessary blocks when for example a system update or your software update is performed? Depending on your answer choose ‘yes’ or ‘no’. It’s your systems and network at stake, not mine.
If you choose yes you’ll get this.
- Do you want to enable the firewall-drop response? (y/n) [y]:
- firewall-drop enabled (local) for levels >= 6
Now, this question will be asked.
Do you want to add more IPs to the white list? (y/n)? [n]:
White list any other IP you don’t want to get blocked here.
And the last question will come now in the form of syslog activation.
3.5- Do you want to enable remote syslog (port 514 udp)? (y/n) [y]:
Syslog is used to send logs on a conventional format to other systems, such as ELK stacks for further examination but this can be very useful to integrate into SIEM software as already explained above. This will help security teams to examine suspicious activity on hosts. An alert on a network IDS such as Suricata can be further followed and investigated at one of the hosts involved if we set this and have a SIEM or similar at the other end. Say no if you are using this in standalone mode since this won’t have use from you.
Now that all questions have been answered you’ll be granted with this message.
3.6- Setting the configuration to analyze the following logs:
- If you want to monitor any other file, just change
the ossec.conf and add a new localfile entry.
Any questions about the configuration can be answered
by visiting us online at http://www.ossec.net .
--- Press ENTER to continue ---
We press enter and the building process starts. Lots of jibberish will be displayed before our eyes when installing OSSEC on Ubuntu. This process won’t be long but it’s a good time to stand up for a coffee and come back to your chair quickly.
The last message from the build will read very similar to this.
- System is Debian (Ubuntu or derivative).
- Init script modified to start OSSEC HIDS during boot.
- Configuration finished properly.
- To start OSSEC HIDS:
- To stop OSSEC HIDS:
- The configuration can be viewed or modified at /var/ossec/etc/ossec.conf
Thanks for using the OSSEC HIDS.
If you have any question, suggestion or if you find any bug,
contact us at https://github.com/ossec/ossec-hids or using
our public maillist at
More information can be found at http://www.ossec.net
--- Press ENTER to finish (maybe more information below). ---
Click enter and…
- In order to connect agent and server, you need to add each agent to the server.
Run the 'manage_agents' to add or remove them:
More information at:
Once OSSEC has been finally installed we need to make systemd aware of it so can can monitor processes related to it with sytem-based tools.
$ sudo systemctl enable ossec
Once systemd is aware of this, we can launch OSSEC.
$ sudo systemctl start ossec
We can now check which processes are active.
$ sudo systemctl status ossec
The above command will display:
albert@ossecman:~$ sudo systemctl status ossec
● ossec.service - LSB: Start and stop OSSEC HIDS
Loaded: loaded (/etc/init.d/ossec; generated)
Active: active (running) since Wed 2020-03-04 11:58:07 UTC; 2s ago
Process: 25127 ExecStart=/etc/init.d/ossec start (code=exited, status=0/SUCCESS)
Tasks: 7 (limit: 1108)
Mar 04 11:58:04 ossecman ossec: Starting OSSEC HIDS v3.6.0...
Mar 04 11:58:04 ossecman ossec: Started ossec-maild...
Mar 04 11:58:04 ossecman ossec: Started ossec-execd...
Mar 04 11:58:04 ossecman ossec: Started ossec-analysisd...
Mar 04 11:58:04 ossecman ossec: Started ossec-logcollector...
Mar 04 11:58:04 ossecman ossec: Started ossec-remoted...
Mar 04 11:58:05 ossecman ossec: Started ossec-syscheckd...
Mar 04 11:58:05 ossecman ossec: Started ossec-monitord...
Mar 04 11:58:07 ossecman ossec: Completed.
Mar 04 11:58:07 ossecman systemd: Started LSB: Start and stop OSSEC HIDS.
Alternatively the combination of ‘ps’ and ‘grep’ commands will do similarly.
$ ps -ef | grep ossec
As a result we’ll see something similar to this:
albert@ossecman:~$ ps -ef | grep ossec
ossecm 25158 1 0 11:58 ? 00:00:00 /var/ossec/bin/ossec-maild
ossecm 25159 25158 0 11:58 ? 00:00:00 /var/ossec/bin/ossec-maild
root 25166 1 0 11:58 ? 00:00:00 /var/ossec/bin/ossec-execd
ossec 25170 1 0 11:58 ? 00:00:00 /var/ossec/bin/ossec-analysisd
root 25175 1 0 11:58 ? 00:00:00 /var/ossec/bin/ossec-logcollector
root 25187 1 0 11:58 ? 00:00:00 /var/ossec/bin/ossec-syscheckd
ossec 25191 1 0 11:58 ? 00:00:00 /var/ossec/bin/ossec-monitord
ossecm 25205 25158 0 11:58 ? 00:00:00 [ossec-maild] <defunct>
albert 25210 1087 0 11:58 pts/0 00:00:00 grep --color=auto ossec
Most tutorials end here, with the install finished, and although many incorporate how to set a graphical user interface on a web service too. This bit is at the end of this guide, but before that, we should have a look at some important configuration files so we have a basic understanding of this tool.
File permissions on the install directory /var/ossec are set to 550.
root@ossecman:/var/ossec# ll /var | grep ossec
dr-xr-x--- 13 root ossec 4096 Mar 4 11:56 ossec/
Inside we will encounter the following directory structure.
dr-xr-x--- 13 root ossec 4096 Mar 4 11:56 ./
drwxr-xr-x 14 root root 4096 Mar 4 11:56 ../
drwx------ 2 root ossec 4096 Mar 4 11:56 .ssh/
dr-xr-x--- 3 root ossec 4096 Mar 4 11:56 active-response/
dr-xr-x--- 2 root ossec 4096 Mar 4 11:56 agentless/
dr-xr-x--- 2 root root 4096 Mar 4 11:56 bin/
dr-xr-x--- 3 root ossec 4096 Mar 4 11:56 etc/
drwxr-x--- 5 ossec ossec 4096 Mar 4 11:56 logs/
dr-xr-x--- 11 root ossec 4096 Mar 4 11:56 queue/
dr-xr-x--- 2 root ossec 4096 Mar 4 11:56 rules/
drwxr-x--- 5 ossec ossec 4096 Mar 4 11:58 stats/
dr-xr-x--T 2 root ossec 4096 Mar 4 11:56 tmp/
dr-xr-x--- 3 root ossec 4096 Mar 4 11:58 var/
As the convention states configuration files are found into the ‘etc’ directory. Inside we’ll find this structure.
dr-xr-x--- 3 root ossec 4096 Mar 4 11:56 ./
dr-xr-x--- 13 root ossec 4096 Mar 4 11:56 ../
-rw-r----- 1 root ossec 0 Mar 4 11:56 client.keys
-rw-r----- 1 root ossec 152472 Mar 4 11:56 decoder.xml
-rw-r----- 1 root ossec 3306 Mar 4 11:56 internal_options.conf
-rw-r----- 1 root ossec 320 Mar 4 11:56 local_internal_options.conf
-r--r----- 1 root ossec 127 Mar 4 11:56 localtime
-rw-r----- 1 root root 90 Mar 4 11:56 ossec-init.conf
-rw-r----- 1 root ossec 7703 Mar 4 11:56 ossec.conf
-r--r----- 1 root ossec 715 Mar 4 11:56 resolv.conf
drwxrwx--- 2 root ossec 4096 Mar 4 11:58 shared/
One important file here is the ‘ossec.conf’ one. It is divided into 9 sections as far as I can read. Let’s briefly talk about them.
Section 1.- There is a first block where some global settings are applied such as if email notifications are enabled, what address has to be used and what smtp server has to be connected to.
These aren’t the only ‘global’ entries on the file. Others can be read embedded in other ‘sections’ of the ossec.conf file such as the one underneath the ‘rootkit check’ section. It reads like this:
If you recall this above corresponds to the white listing when enabling the ‘active-response’ feature. Tune these entries to modify the white-list behaviour at your will.
Section 2.- Another section is the long ‘rules’ one. This is a long list of entries to rules which are located in the /var/ossec/rules directory. Checking one of the rules files we can read one dedicated for WordPress, although that file contains a few of these.
<rule id="9505" level="7">
<pcre2>Warning: Comment flood attempt</pcre2>
<description>Wordpress Comment Flood Attempt.</description>
As we can see an alert about a type of attack known as ‘comment flood attempt’ will be triggered by such event and it will qualify as a level 7 severity type. For more details read this entry to have a basic understanding on the rules and this from Wikiepdia for the syslog alert convention.
By default OSSEC will use all the rules stated in the ossec.conf file unless we disable them. If you need them all go ahead and leave them as they are. Some nefarious activity on your network can trigger them, and you may not have a WordPress install whatsoever, but this could indicate something wrong is going on. It could be a the host level, at the network level or just a false positive. But this is an indicator at the end of the day.
If you choose to deactivate some of the rules, you can do it by appending this ‘<!–’ at the beginning of the line, and include this other bit ‘–>’ at the end.
Example of an activated rule:
Example of a deactivated rule:
<!-- <include>openbsd_rules.xml</include> -->
Section 3.- Another interesting section, and this you may desire to change the default settings, is the ‘syscheck’ one. OSSEC will perform a system check every 79200 seconds, or 22 hours. The original bit for this reads like so:
<!-- Frequency that syscheck is executed - default to every 22 hours -->
In this section there are also statements for what directories to check but also which ones to ignore, both on UNIX and UNIX-like systems and Windows. If there are some other directories you wish to be ignored at them into the list. Defaults for UNIX and UNIX-like reads like this:
<!-- Files/directories to ignore -->
Section 4.- Next section is the rootkit one. It reads like so:
If the rootkitcheck has been enabled at install time OSSEC will monitor the filesystem looking for already known files which are typically used on attacks and implanted on systems. Think of this as those were signatures in an antivirus software. If the software sees them present it will act accordingly. Further details can be read on the documentation.
By default checks will be performed every two hours. And if we need to monitor Windows boxes for example the default doesn’t include the specific files for those, only generic ones. Include them on the section depicted above. They are included in the /var/ossec/etc/shared/ directory.
Section 5.- Another section in the ossec.conf file is the one dedicated to the syslog facility so logs can be forwarded.
Section 6.- Here we find the alerts level configured.
Section 7.- Actions can be found here. As we recall, at install time, we have been asked if we wanted any actions would be triggered by some default alerts configured on OSSEC. These are a few of those actions.
The list of available scripts those command entries trigger can be found at the following directory:
Removing those command entries, and restarting OSSEC afterwards, will make it stop using them. Add and remove those you need. And remember this at install time. Do I really want inmediate actions to be triggered on certain events? To answer this question carefully read the documentation and do some testing.
Section 8.- In here we find the configuration bits for the ‘active-response’ feature.
<!-- Active Response Config -->
<!-- This response is going to execute the host-deny
- command for every event that fires a rule with
- level (severity) >= 6.
- The IP is going to be blocked for 600 seconds.
<!-- Firewall Drop response. Block the IP for
- 600 seconds on the firewall (iptables,
- ipfilter, etc).
We can obviosly tune the blocking time for a certain offensive IP but the severity level this is triggered by. As you can see this configuration points to ‘local’. But be aware of this with agents if you start experiencing blocks after OSSEC is installed on your infrastructure. For further detail do not forget to read this section of the documentation.
Section 9.- Here we will find the local files this OSSEC installation is monitoring.
<!-- Files to monitor (localfiles) -->
<command>netstat -tan |grep LISTEN |egrep -v '(127.0.0.1| ::1)' | sort</command>
<command>last -n 5</command>
You may want to for example disable the auth.log monitoring if you are bothered to see you and your team being warned about your own logins to this system. But leave it on if this should be running and no one getting in unless for maintenance tasks, every month for example.
Another bit you may want to disable is the packages monitoring. At every system update you’ll be warned about changes on the system. A nefarious actor may want to install you a few bits of this and that so their malicious python code will work on your systems. Not nice.
Furthermore we can extend OSSEC functionality with an integrated web user interface called OSSEC-WUI. Be aware this is not under development nor maintenance from anyone, bugs may appear and other issues such as security vulnerabilities may be encountered. You can perfectly skip this part of the tutorial completely and OSSEC will work for you just fine.
Packages for the OSSEC-WUI interface include:
apache2 apache2-utils libapache2-mod-php7.2 php7.2 php7.2-cli php7.2-common
So make an install of those with the following command:
$ sudo apt install apache2-utils libapache2-mod-php7.2 php7.2 php7.2-cli php7.2-common -y
We will now need to install git so we can clone the OSSEC-WUI repo and install it.
$ sudo apt install git
With git installed we clond the repo.
$ sudo git clone https://github.com/ossec/ossec-wui.git /opt/ossec-wui-install
We now launch the installation script.
$ sudo sh /opt/ossec-wui-install/setup.sh
A series of very simple questions will be asked, such as username and password. Once we finish installing and configuring OSSEC-WUI, when visiting the server’s ip with the browser will be asked for those. We will also be asked about the Apache username, in this case we have to type ‘www-data’ which is Ubuntu’s one.
Once we have installed OSSEC-WUI we need to configure it.
First we create an Apache HTTP virtual host file
$ sudo touch /etc/apache2/sites-enabled/ossec-wui.conf
We will include this configuration. Tune it to your needs.
Require all granted
CustomLog /var/log/apache2/moodle-access.log combined
Remove now the original default configuration on the default virtualhost entry, otherwise you won’t see anything when firing up Apache HTTP and visiting the server’s IP with the browser.
$ sudo rm /etc/apache2/sites-enabled/000-default.conf
Enable the Apache HTTP’s rewrite module, so URL’s can be correctly transformed by OSSEC-WUI.
$ sudo a2enmod rewrite
Now change /var/ossec directory permissions so OSSEC-WUI can read from it. Otherwise you’ll be left without seeing anything.
$ sudo chmod 554 /var/ossec
Restart Apache HTTP.
$ sudo systemctl restart apache2
Now use your browser to check OSSEC-WUI.

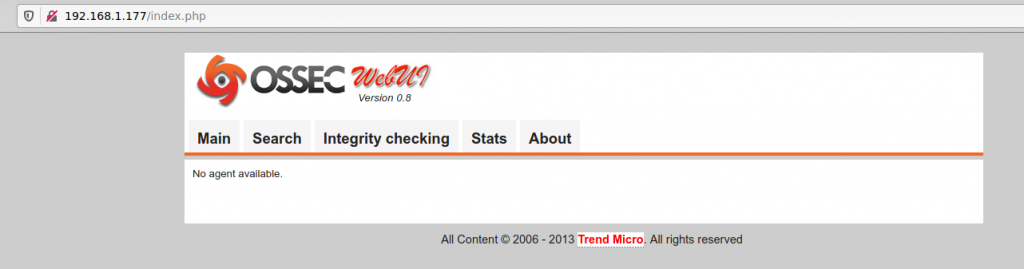

This is what you should see:
To improve security on this stack of Apache HTTP and PHP, something you’ll need, you can follow security recommendations on this article about hardening Apache HTTP. It’s based on FreeBSD but all the premises and concepts apply.
This how to install OSSEC on Ubuntu guide has two drawbacks. The unmaintained OSSEC-WUI is one of those but you can avoid its use with alternatives such as an ELK stack and integrate it, or just rely on email. The second issue is around maintenance. See, this install has been made on sources so any new update on the software will not land automatically with ‘apt update’ and ‘apt upgrade’. A new build is necessary since we haven’t installed any repository nor used an already compiled binary. Therefore this implies time to build and possibly build fails which in turn require more time and effort to check what is missing/wrong. The solution?
Installing an already compiled binary and setting a repository entry, from the creators, in our sources list, is one simple solution to the maintenance problems.
If you are already here it is because not only you are interested but you may understand how scripts work. If so, you can use some of the scripts for OSSEC installs I wrote. Those can be found here. Use them at your own discretion and if anything breaks I am not liable nor responsible by any mean for it. Be wise.
This is all for this how to install OSSEC on Ubuntu. For further details on how the tool works just visit the official documentation pages. At a later article we’ll configure an agent on a Windows box and will speak about configuring agents connected to servers like this one we’ve just set up.
PS: Where have you seen someone saying their guide has drawbacks? Aren’t they all perfect? This one isn’t and you can tell you saw this unperfection comment here first, on adminbyaccident.com. Because accidents happen.
This same setup can be built in DigitalOcean. Use this link to get 100 $ credit at DOcean and support Adminbyaccident.com hosting costs.
